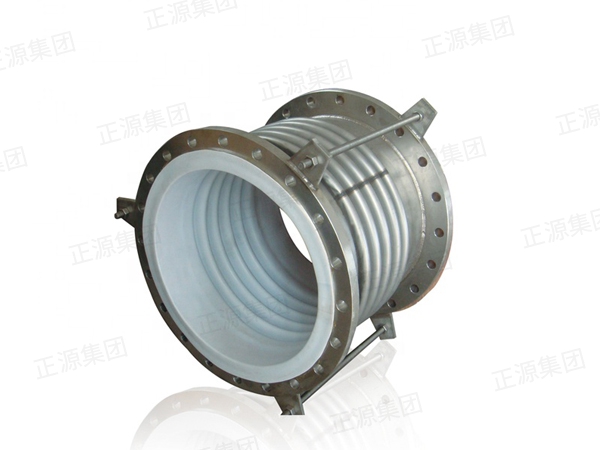

公稱通徑 |
波(波數) |
長度(mm) |
四氟厚度(mm) |
通徑(mm) |
允許補償量(±△X)(mm) |
使用壓力MPa |
|
DN(mm) |
NPS(inch) |
||||||
40 | 1 1/2 | 3 | 95 | 1.8 | 43 | 6 | 1.0 |
50 | 2 | 3 | 100 | 1.8 | 52 | 8.5 | 1.0 |
65 | 2 1/2 | 3 | 110 | 1.8 | 72 | 10.5 | 1.0 |
80 | 3 | 3 | 120 | 1.8 | 84 | 11 | 1.0 |
100 | 4 | 3 | 130 | 1.8 | 104 | 11 | 1.0 |
125 | 5 | 3 | 150 | 1.8 | 130 | 15 | 1.0 |
150 | 6 | 3 | 160 | 1.8 | 156 | 17 | 1.0 |
200 | 8 | 3 | 190 | 2 | 215 | 17 | 1.0 |
250 | 10 | 3 | 200 | 2 | 269 | 21 | 1.0 |
300 | 12 | 3 | 220 | 2 | 320 | 21 | 1.0 |
350 | 14 | 3 | 260 | 2 | 373 | 23 | 1.0 |
400 | 16 | 3 | 280 | 2 | 422 | 24 | 1.0 |
公稱通徑 |
波(波數) |
長度(mm) |
四氟厚度(mm) |
通徑(mm) |
允許補償量(±△X)(mm) |
使用壓力MPa |
|
DN(mm) |
NPS(inch) |
||||||
40 | 1 1/2 | 3 | 95 | 1.8 | 43 | 6 | 1.0 |
50 | 2 | 3 | 100 | 1.8 | 52 | 8.5 | 1.0 |
65 | 2 1/2 | 3 | 110 | 1.8 | 72 | 10.5 | 1.0 |
80 | 3 | 3 | 120 | 1.8 | 84 | 11 | 1.0 |
100 | 4 | 3 | 130 | 1.8 | 104 | 11 | 1.0 |
125 | 5 | 3 | 150 | 1.8 | 130 | 15 | 1.0 |
150 | 6 | 3 | 160 | 1.8 | 156 | 17 | 1.0 |
200 | 8 | 3 | 190 | 2 | 215 | 17 | 1.0 |
250 | 10 | 3 | 200 | 2 | 269 | 21 | 1.0 |
300 | 12 | 3 | 220 | 2 | 320 | 21 | 1.0 |
350 | 14 | 3 | 260 | 2 | 373 | 23 | 1.0 |
400 | 16 | 3 | 280 | 2 | 422 | 24 | 1.0 |
