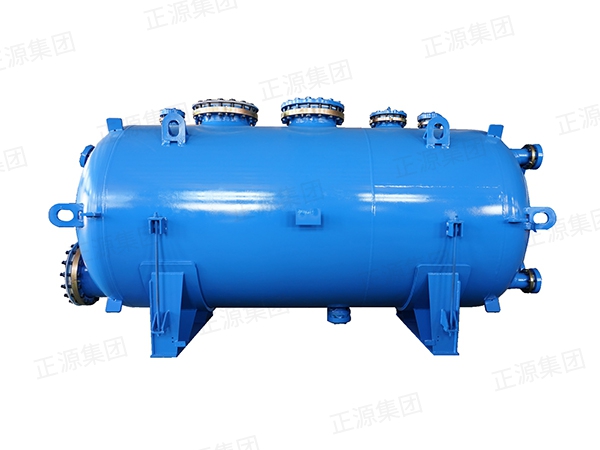

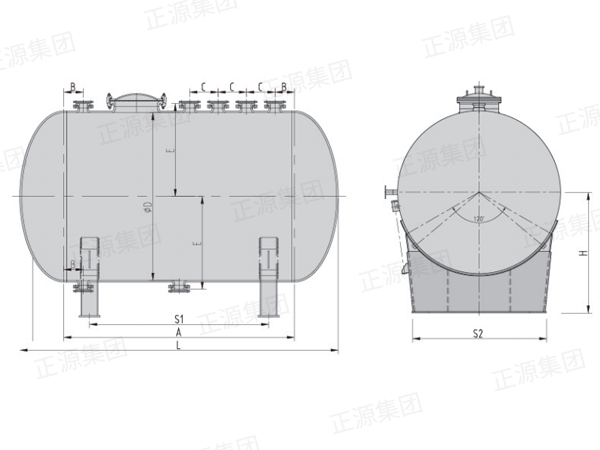

HS系列臥式貯罐主要參數表
|
系列 |
HS系列 |
|||||||||||||
|
公稱容積(L) |
D mm |
A mm |
L mm |
H mm |
B mm |
C mm |
E mm |
S1 mm |
S2 mm |
入孔M |
管口規格 |
實際容積(L) |
壁厚 |
設備重 |
|
1000 |
1000 |
1250 |
1770 |
750 |
125 |
250 |
585 |
950 |
800 |
400 |
4×80A |
1150 |
12 |
800 |
|
1500 |
1000 |
1850 |
2370 |
750 |
145 |
260 |
585 |
1550 |
800 |
400 |
4×80A |
1600 |
12 |
850 |
|
2000 |
1200 |
1700 |
2324 |
850 |
145 |
260 |
685 |
1400 |
1000 |
400 |
4×80A |
2200 |
12 |
1100 |
|
3000 |
1300 |
2050 |
2728 |
900 |
160 |
270 |
735 |
1600 |
1100 |
400 |
6×80A |
3200 |
14 |
1550 |
|
4000 |
1500 |
2050 |
2832 |
1000 |
160 |
270 |
835 |
1600 |
1250 |
400 |
7×80A |
4500 |
16 |
2050 |
|
5000 |
1600 |
2190 |
3022 |
1100 |
160 |
270 |
885 |
1790 |
1400 |
400 |
7×80A |
5500 |
16 |
2330 |
|
6300 |
1750 |
2340 |
3251 |
1225 |
180 |
310 |
965 |
1830 |
1500 |
400 |
7×100A |
7000 |
18 |
2820 |
|
8000 |
1900 |
2480 |
3416 |
1300 |
180 |
310 |
1040 |
1900 |
1600 |
400 |
7×100A |
8800 |
18 |
3530 |
|
10000 |
2000 |
2830 |
3966 |
1400 |
180 |
310 |
1090 |
2200 |
1700 |
450 |
8×100A |
11000 |
18 |
4200 |
|
12500 |
2000 |
3730 |
4766 |
1400 |
180 |
310 |
1090 |
3000 |
1700 |
450 |
8×100A |
13900 |
18 |
4600 |
|
16000 |
2200 |
3920 |
5060 |
1500 |
310 |
330 |
1200 |
3180 |
1800 |
450 |
8×100A |
17750 |
20 |
6200 |
|
20000 |
2400 |
4100 |
5340 |
1600 |
310 |
330 |
1300 |
3350 |
1900 |
450 |
8×100A |
22000 |
22 |
7900 |
|
25000 |
2600 |
4140 |
5484 |
1700 |
315 |
340 |
1410 |
3360 |
2000 |
450 |
8×100A |
26560 |
26 |
9500 |
|
30000 |
2800 |
4260 |
5708 |
1800 |
315 |
340 |
1510 |
3400 |
2100 |
500 |
8×100A |
31960 |
28 |
11000 |
|
40000 |
3000 |
4990 |
6540 |
1900 |
315 |
340 |
1610 |
4000 |
2200 |
500 |
8×100A |
42330 |
28 |
13500 |
|
50000 |
3400 |
4720 |
6500 |
2000 |
315 |
340 |
1820 |
3720 |
2480 |
600 |
8×150A |
53900 |
30 |
20485 |
|
63000 |
3400 |
5270 |
7050 |
2000 |
315 |
340 |
1820 |
1270 |
2640 |
600 |
8×150A |
66670 |
32 |
25025 |
|
80000 |
3800 |
6120 |
8100 |
2200 |
315 |
340 |
2020 |
4620 |
2780 |
600 |
8×150A |
84680 |
34 |
31465 |
|
100000 |
4000 |
7380 |
9452 |
2580 |
380 |
600 |
2156 |
5300 |
2940 |
600 |
12×150A |
109500 |
36 |
42800 |
